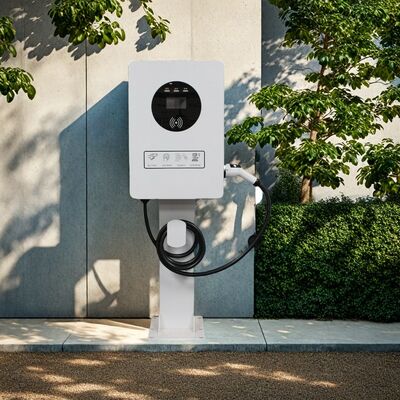

New DCEU20 DC Fast Charging Station with 20KW-40KW Output 380V AC Input and GBT Standard Wall-mounted EV Charger

Model Number: DCEU20
Detail Information
Product Description
Detail Information
Place of Origin:
Guangdong, China
Purpose:
DC Fast Charging Station
Condition:
New
Interface Standard:
GBT
Output Current:
DC
Output Power:
20KW-40KW
Input Voltage:
380V,AC
Product Description
New DCEU20 DC Fast Wallbox EV Charger Station 20KW-40KW Output
High-performance DC fast charging station with 380V AC input and GBT standard, designed for wall-mounted installation.

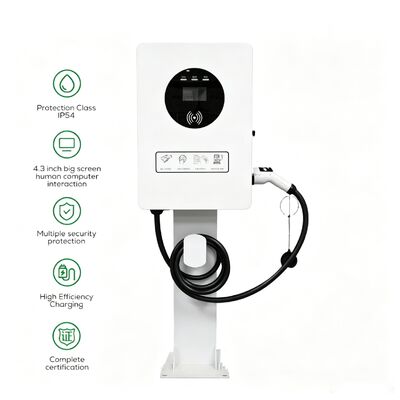

New DCEU20 DC Fast Charging Station with 20KW-40KW Output 380V AC Input and GBT Standard Wall-mounted EV Charger 0
Technical Specifications
Model DCEU20KW DCEU30KW DCEU40KW
Shell Material Sheet Metal
Dimension (L*W*T) 550mm * 300mm * 900mm
Weight ≤60KG ≤70KG ≤90KG
Installation Method Wall-mounted
Cable Routing Bottom Inlet Wiring, Up Outlet Wiring
Cable Length 5 M
Charging Outlets Single (CCS1/CCS2/GBT)
Electrical Specifications
AC Input Voltage: AC400V+10%, 3P+N+PEAC
Input Frequency: 50Hz/60Hz
Consumption: ≤15wh
Rated Power: 20KW / 30KW / 40KW
Output Voltage Range: CCS1/CCS2/GBT: 150 Vdc – 1000 Vdc
Output Current: 0~66.5A / 0~100A / 0~133A
Efficiency: ≥95%
Power Factor: ≥0.99 (load:100%)
Connectivity & Interface
Connectivity Authorization: RFID, App
Screen: 7 inch LCD screen/LED light
User Interface: Emergency stop button, LED indicator, Card swiping, Touch screen
OCPP: OCPP 1.6
Network Interface: Ethernet/4G
Environmental Conditions
Application Place: Indoor/Outdoor
Working Latitude: <2000m
Working Temperature: -30°C to +50°C
Working Humidity: 5%~95%
Protection Level: IP55
Cooling: Forced-air cooling
Safety & Certification
Safety Design: Over/under voltage protection, Overload protection, Current leakage protection, Grounding protection, Over temperature protection, Lightning surge protection
Charging Standards: IEC 61851-21-2:2021, IEC 61000-6-2:2019, EN61000-6-4:2019, IEC 61851-1:2019, EN61851-23:2014, EN 61851-24:2014
Warranty
24 months warranty
Company Introduction
Shenzhen Huinengzhi Technology Co., Ltd. is a charging pile research and development company. Since its establishment in 2014, we have been dedicated to the research and development of charging technology, production of PCBA, and manufacturing of AC and DC charging stations. Welcome to cooperate with us. We can provide you with a complete range of charging station products, as well as software and hardware development and customization services.
Frequently Asked Questions
  • Who are we? We are based in Guangdong, China, starting from 2014. We sell to Eastern Europe (25.00%), Western Europe (25.00%), Northern Europe (25.00%), Southern Europe (25.00%). There are about 51-100 people in our office.
  • How can we guarantee quality? Always a pre-production sample before mass production; Always final inspection before shipment.
  • What can you buy from us? AC charging pile, DC charging pile.
  • Why should you buy from us? Shenzhen Huinengzhi Technology Co., Ltd. is a charging pile research and development company with expertise since 2014 in charging technology and manufacturing of AC and DC charging stations.
  • What services can we provide? Complete range of charging station products, software and hardware development, and customization services.
