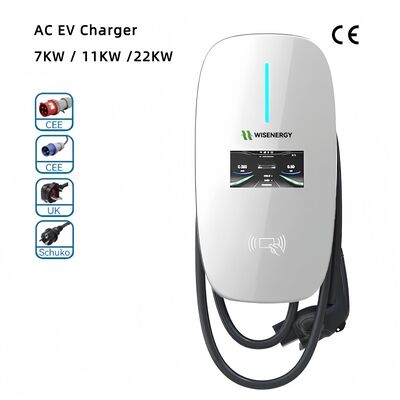

EV Fast Charger 7kW-22kW with Type 2 Connector and IP54 Rated for New Energy Vehicles

1.The  EV Fast Charger is a 7kW-22kW charging station with the capability to charge vehicles up to 7 kW, making it an ideal purchase for those seeking efficient and reliable charging for their electric vehicles (EVs). This high-power charging station is equipped with a 5-meter customizable cable, has a voltage range of 220V±15%, and is compatible with various connector types such as Tesla, GBT, Type 1, and Type 2. It is also compatible with both CCS and Type 1 connectors, providing versatility for different types of electric vehicles. The charger is IP 54-rated, offering protection against dust ingress and water splashes. The stylish black enclosure further enhances its modern look. The charger comes with a one-year warranty and is certified by CE and ROHS.

2.The model is a durable charger with impeccable build quality that comes with an IP 54 rating for dust tolerance and splash resistance. It is designed to last in various weather conditions, making it suitable for outdoor installations or harsh environments.

3.The charger supports up to 16A-48A of charging current, depending on the car's battery capacity and charging needs. This allows for quick and efficient charging, reducing the time required to power up your electric vehicle.

4.The charger is compatible with newer electric vehicles and is reverse compatible with legacy OCPP charging stations. This makes it a versatile charging solution for a wide range of vehicles, regardless of the vehicle's make, model, and charging station type.

5.The Wisenergy TR-AC-S-714 EV Fast Charger is a powerful charging solution that is easy to install and maintain. With its built-in protection features, it ensures the safety of both the car and the charger. Its compatibility with various connectors and charging standards makes it suitable for retrofitting or upgrading existing charging infrastructure. The included mounting kit makes installation a breeze, and the charger's compact design makes it suitable for installation in tight spaces.

Established in 2014, Shenzhen Huinengzhi Technology Co., Ltd. specializes in charging pile research and development. Our core competence is rooted in the in-depth exploration of charging technology, with a particular focus on the production of PCBA and manufacturing of AC and DC charging stations. Collaborating with us will enable you to access a diverse range of charging station products, as well as tailor-made software and hardware development services. We invite you to join forces with us and experience the benefits of our extensive expertise in the field.

Q1. Who are we?

A: Our company " Shenzhen Huinengzhi Technology"

10+ Years Dedicated EV Charger Manufacturer (Established in 2014).

Over 1000 units deployed across Europe, South America, and Asia.

Independent Hardware and Software R&D with self-developed SECC controllers.

Q2. Do you test all your chargers before shipping?
A: All major components are tested before assembly and each charger is fully tested before shipped

Q3.what can you buy from us?
A: AC &DC EV charging pile

Q4. Can this 7kW charger be managed by a third-party white-label software platform?

A: Yes. With full OCPP 1.6J compliance, the charger allows operators to change the WebSocket URL via a local configuration web page or app, connecting instantly to any third-party CMS for billing, user authorization, and firmware OTA updates.

Q5: What are the installation requirements for a 7kW AC charging station?

A: A 7kW AC charger requires a single-phase 230V AC power supply with a current of 32A. It is highly recommended to install a dedicated circuit breaker (Type B RCD or Type A + DC 6mA protection) to ensure electrical safety.

Q6: Can a 7kW AC charger be installed at home?

A: Yes. A 7kW AC charger is the most popular choice for residential installations, as most household electrical grids can support a 32A single-phase load without requiring expensive grid upgrades.

Q7: Is a 7kW AC charger compatible with all electric vehicles?

A: Yes, it is compatible with almost all modern EVs and plug-in hybrids (PHEVs). However, the actual charging speed will be limited by the vehicle’s maximum onboard charger capacity (e.g., if a PHEV only accepts 3.5kW, it will charge at 3.5kW even when connected to a 7kW charger).

Q8: What charging interface standards do these chargers support?

A: Our charging stations can be configured with various global connector standards:

AC Charging: Type 2 (Europe), Type 1 (North America), GB/T (China).

DC Charging: CCS Combo 2 (Europe), CCS Combo 1 (North America), CHAdeMO (Japan), GB/T (China), and NACS (Tesla standard).

Q9: Are these chargers safe to use in the rain or extreme weather?

A: Yes. Our chargers are designed with high weatherproof ratings (typically IP54 or IP55 for outdoor use). They feature multiple safety protections, including over-current, over-voltage, short-circuit, leakage, and lightning protection.

Q10: Can I custom my LOGO?

Answer: Yes. You can not only custom LOGO, but also color, cable, enclosure box and carton. Just contact us if you have special needs. We accept full customization for Appearance/Software/Functions/ Accessories/Charging Standards/Packaging etc.

Q11: How long to fully charge a car?

To know how long to charge a car, you need to know the OBC(on board charger) power of the car, the car battery capacity, the charger power. The hours to fully charge a car =battery kw.h/obc or charger power the lower one. For e.g, the battery is 40kw.h,obc is 7kw, charger is 22kw, the 40/7=5.7hours. If the obc is 22kw, then 40/22=1.8hours.
